New Vehicles » KTM » 690 Enduro R
Model Quick Search

$10,498.00

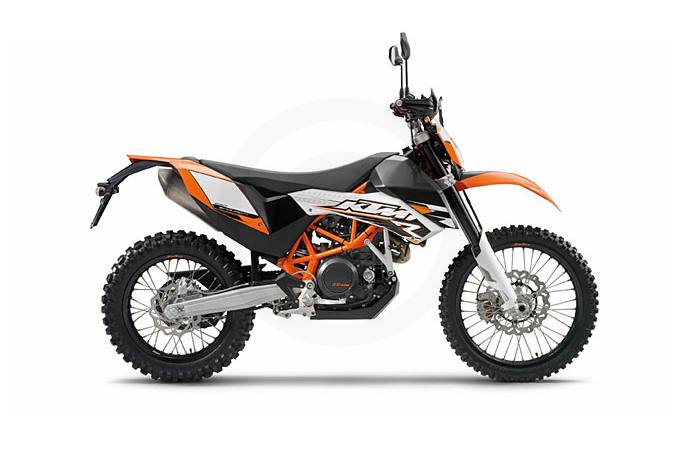

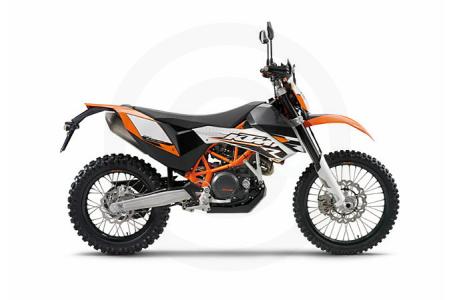

2009 KTM 690 Enduro R
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The right machine for hardcore Enduro action.


If you talk about hard Enduro, you really mean LC4. KTM has always made its mark on this category with its LC4 models. A low weight, maximum performance, robust off-road technology and the highest reliability – then and now!


Because with the 690 Enduro R, KTM has created a hard Enduro bike for the 21st century. Unbeatable power, even better ridability, perfect technology and a thoroughbred off-road chassis make this bike an all-rounder with phenomenal Enduro qualities and extremely solid street riding behaviour.

    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 654 cc
    • Bore x stroke: 102 / 80 mm (4.02 / 3.15")
    • Performance (homologated): 46.3 kW / 7500 rpm
    • Max. torque: 64 Nm / 6000 rpm
    • Compression ratio: 11.8:1
    • Starter/Battery: E-Starter / 12 V 8.6 Ah
    • Transmission: 6 gears, dog clutch engagement
    • Fuel Mixture Generation: Keihin EMS with EPT (Electr. Power Throttle)
    • Control: 4 V / OHC with roller rocker arms
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: Motorex, SAE 10W60
    • Primary drive: 36:79
    • Final drive: 15:45
    • Cooling: Liquid cooled
    • Clutch: APTC slipper clutch, hydraulically operated
    • Motor Management: Keihin EMS with EPT (Electr. Power Throttle)
    Chassis
    • Frame: Chromium-Molybdenum trellis frame, powder coated
    • Subframe: Self-supporting plastic tank
    • Handlebar: Aluminium Ø 28 / 22 mm (1.10 / 0.87"), tapered
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP mono shock with Pro Lever Linkage
    • Suspension travel front/rear: 275 / 275 mm (10.83 / 10.83")
    • Front brake: Brembo two piston, floating caliper, brake disc Ø 300 mm
    • Rear brake: Brembo single piston, floating caliper, brake disc Ø 240 mm
    • Rims, front/rear: 1.85 x 21'' / 2.50 x 18''
    • Tires, front/rear: 90/90-21"; 140/80-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Stainless steel silencer with regulated catalytic converter
    • Steering head angle: 63°
    • Trail: 115 mm (4.53")
    • Wheel base: 1498 ± 15 mm (58.98 ± 0.59")
    • Ground clearance (unloaded): 300 mm (11.81")
    • Seat height: 930 mm (36.61")
    • Tank capacity: approx. 12 liters (3.17 gal) / 2.5 liters reserve (0.66 gal)
    • Weight (no fuel): approx. 138.5 kg (305.4 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 654 cc
    Bore and Stroke 102 x 80 mm (4.02 x 3.15 in.)
    Cooling Liquid cooled
    Compression Ratio 11.8:1
    Fuel System Keihin EMS with EPT (Electr. Power Throttle)
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Brembo two piston, floating caliper, brake disc Ø 300 mm
    Front Tire 90/90-21 in.
    Rear Suspension WP mono shock with Pro Lever Linkage; Travel: 10.83 in. (275 mm)
    Rear Brakes Brembo single piston, floating caliper, brake disc Ø 240 mm
    Rear Tire 140/80-18 in.
    Dimensions
    Dry Weight 305.4 lbs (138.5 kg)
    Fuel Capacity 3.17 gal (12 l); Reserve: 0.66 gal (2.5 l)
    Wheelbase 58.98 ± 0.59 in. (1498 ± 15 mm)
    Ground Clearance 11.81 in. (300 mm)
    Seat Height 36.61 in. (930 mm)
    Trail 4.53 in. (115 mm)
    Rake 63°
    Transmission
    Transmission 6 gears, dog clutch engagement
    Final Drive 15:45

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 690 Enduro R
    Style Off-Road
    MSRP* $10,498.00
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 10.83 in. (275 mm)
    Front Brakes Brembo two piston, floating caliper, brake disc Ø 300 mm
    Front Tire 90/90-21 in.
    Rear Suspension WP mono shock with Pro Lever Linkage; Travel: 10.83 in. (275 mm)
    Rear Brakes Brembo single piston, floating caliper, brake disc Ø 240 mm
    Rear Tire 140/80-18 in.
    Dimensions
    Dry Weight 305.4 lbs (138.5 kg)
    Fuel Capacity 3.17 gal (12 l); Reserve: 0.66 gal (2.5 l)
    Wheelbase 58.98 ± 0.59 in. (1498 ± 15 mm)
    Ground Clearance 11.81 in. (300 mm)
    Seat Height 36.61 in. (930 mm)
    Trail 4.53 in. (115 mm)
    Rake 63°
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 654 cc
    Bore and Stroke 102 x 80 mm (4.02 x 3.15 in.)
    Cooling Liquid cooled
    Compression Ratio 11.8:1
    Fuel System Keihin EMS with EPT (Electr. Power Throttle)
    Ignition
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears, dog clutch engagement
    Final Drive 15:45
